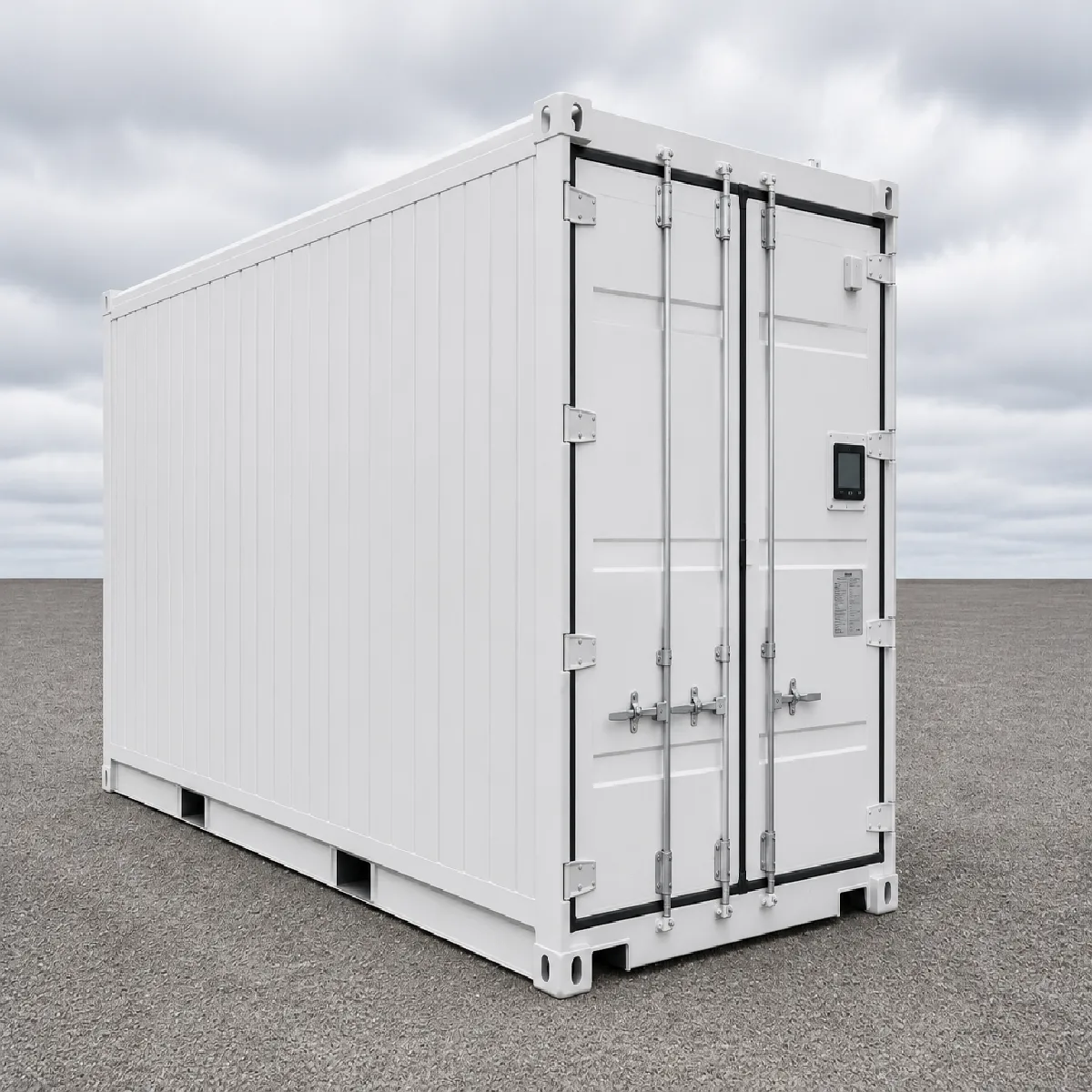

20ft One-Trip Refrigerated Container — New — Daikin Unit

20ft One-Trip Refrigerated Container — New — Daikin Unit
A brand new, never-loaded 20ft refrigerated shipping container for temperature-sensitive cargo storage and transport. This 20ft Refrigerated Container is fitted with a Daikin refrigeration unit and maintains a temperature range of -30°C to +30°C. The superior insulation and efficient refrigeration system reduce

machinery run time — lowering fuel consumption and operating costs across extended storage periods.

The One-Trip condition means the interior is factory-clean, odour-free, and free of residue from previous cargo — suitable for food-grade, pharmaceutical, and chemical cold chain applications without additional cleaning or preparation on arrival.

Internal load bars are available for double pallet storage capacity, making this unit suitable for high-volume cold chain operations as well as single-pallet and IBC storage.

20ft Refrigerated Container Dimensions
Measurement Imperial Metric
Exterior Length 20′ 6,058 mm
Exterior Width 8′ 2,438 mm
Exterior Height 8’6″ 2,591 mm
Interior Length 17’10” 5,444 mm
Interior Width 7’6″ 2,286 mm
Interior Height 7’5″ 2,270 mm
Door Opening Width 7’6″ 2,286 mm
Door Opening Height 7’4″ 2,260 mm
Internal Volume ~1,000 cu ft ~28.3 m³
20ft Refrigerated Container Weight Specifications
Measurement Weight
Tare Weight (Empty) 3,080 kg
Payload Capacity 27,400 kg
Maximum Gross Weight 30,480 kg
20ft Refrigerated Container Refrigeration and Power
Specifications

Condition: One-Trip (New) — Never previously loaded.

Specification Detail
Refrigeration Unit Daikin
Temperature Range -30°C to +30°C
Refrigerant R134a
Power Supply 380–460V, 3-phase, 50/60 Hz
Power Consumption 3–7 kW — varies by temperature set point
Defrost System Electric — automatic timed defrost cycles
Power Cable Standard CEE plug — site-ready connection
20ft Refrigerated Container Body Specifications
Feature Detail
Outer Construction Corten steel panels — corrosion resistant
Interior Walls Stainless steel — food grade
Insulation Polyurethane foam — fully injected,
high-density

Floor Aluminium T-bar floor — forklift rated
Floor Drains Automatic self-closing drains
Door Type Full-width insulated rear cargo doors
Door Seals Heavy-duty rubber gaskets — airtight seal
Corner Castings ISO standard forged steel — crane and forklift
compatible

ISO Standard ISO 668 Series
1

20ft Refrigerated Container Key Features
One-Trip condition — factory new, clean interior, no prior cargo residue
Daikin refrigeration unit — reliable, efficient cold chain performance
-30°C to +30°C — covers frozen, chilled, and ambient temperature requirements
Superior insulation — reduces machinery run time and lowers operating costs
Food-grade stainless steel interior walls — compliant with food handling requirements
High-density polyurethane insulation — minimizes thermal transfer
Aluminum T-bar floor — forklift rated for heavy pallet loads
Automatic self-closing floor drains — simplify washdown and drainage
Internal load bars available — doubles pallet storage capacity
ISO standard corner castings — compatible with crane lift and intermodal transport
20ft Refrigerated Container Applications: Food and Beverage Cold Chain
Store and transport fresh produce, dairy, meat, and seafood within strict temperature parameters. The One-Trip interior is food-grade clean — no additional sanitization required before loading perishable goods.

Pharmaceutical and Medical Storage
Temperature-sensitive pharmaceuticals, vaccines, and biological materials require precise, reliable cold storage. The Daikin unit maintains consistent temperatures with automated defrost cycles — reducing the risk of temperature excursions during long-term storage.

Remote Site Cold Storage
Mining camps, construction sites, and remote agricultural operations use 20ft reefers for on-site food and chemical storage. Teams in remote locations can access fresh food and temperature-sensitive supplies without relying on frequent resupply runs.

Export and Active Shipping
This container suits active intermodal cold chain export — loading directly onto trucks, rail, and cargo vessels without modification and maintaining the cold chain from origin to destination.

Hire and Temporary Cold Storage
The 20ft format suits temporary cold storage during facility fit-outs, equipment failures, and peak demand periods. The compact footprint fits sites where a 40ft unit is impractical.
