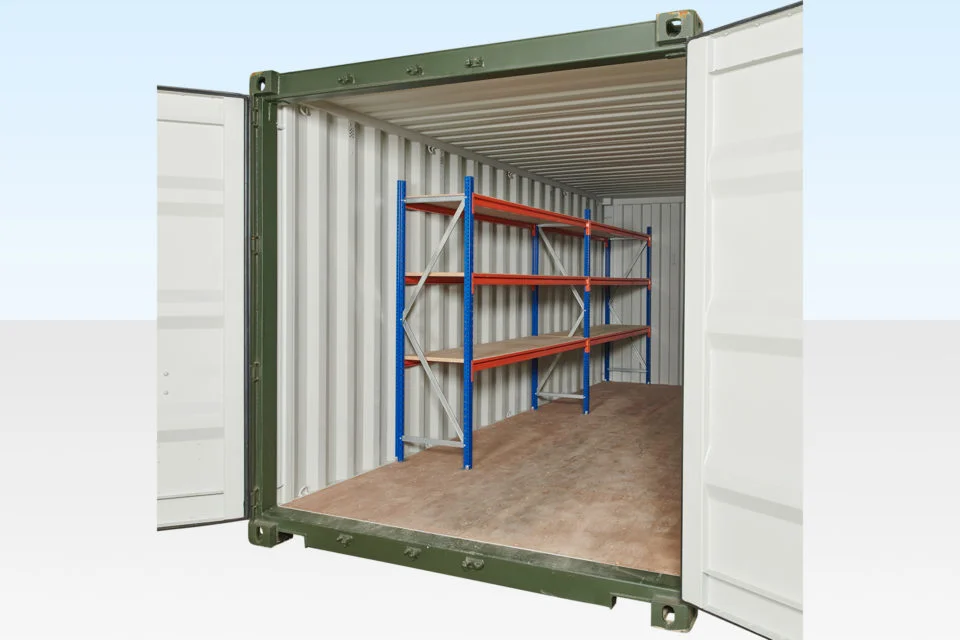

20ft Shipping Container Racking Kit — Single Bay 3-Tier

20ft Shipping Container Racking Kit — Single Bay 3-Tier

Convert your 20ft container into an organised, high-capacity storage system. This single bay, three-tier steel racking kit is purpose-built for standard 20ft ISO container interiors. Furthermore, it also installs in 30ft and 40ft containers.

Each kit covers one side of the container. Order two kits to rack both sides. In addition, the end wall of a 20ft container provides enough clearance for racking. Therefore, pair this kit with our three-tier racking for rear of container to maximise every available wall.

All steel components are powder coated in blue and orange for a tough, scratch-resistant finish. Each 25mm chipboard shelf supports up to 550kg of evenly distributed load.



Racking Specifications

Specification	Detail
Bay Width	2250mm
End Frame Height	2000mm (2m)
End Frame Width	600mm
Shelf Tiers	3
Beams Per Shelf Level	2
Shelf Material	25mm chipboard
Shelf Load Capacity	550kg per shelf
Height Adjustment	50mm increments
Steel Finish	Powder coated — blue and orange
Beam Retention	Safety clips included on all beams
Kit Coverage	Single side — one 2250mm bay

Container Compatibility — Maximum Bays Per Side

This racking suits standard ISO Series 1 freight containers. Moreover, multiple kits run side-by-side in longer containers to cover the full wall length.

Container Size	Max Bays Per Side	Kits Required (Both Sides)
20ft	2	4
30ft	3	6
40ft	5	10

Note: Racking mounts on both side walls and the end wall. However, the end wall requires our dedicated rear-of-container racking kit. Therefore, this side-wall kit is not designed for end wall installation.

Key Features

• Two pre-assembled end frames — no cutting, welding, or drilling required
• Beams slot directly into end frame uprights for rapid assembly
• Safety clips lock all beams and prevent dislodgement under load
• Shelf heights adjust in 50mm increments to suit your stock profile
• Each shelf supports up to 550kg of evenly distributed weight
• All steel powder coated in blue and orange — corrosion and scratch resistant
• 25mm chipboard shelf panels included per tier
• Compatible with 20ft, 30ft, and 40ft standard ISO containers

Assembly Overview

The end frames arrive pre-assembled. Therefore, on-site setup is fast with no specialist tools required.

Step 1 — Position the End Frames

Stand both end frames upright along the container side wall. Space them 2250mm apart.

Step 2 — Slot in the Beams

Slot two beams per tier into the corresponding height holes on each end frame. Furthermore, repeat for all three shelf levels.

Step 3 — Attach Safety Clips

Clip the safety clips onto each beam end. As a result, the beams are locked and cannot dislodge under load.

Step 4 — Lay the Chipboard Shelves

Place the 25mm chipboard panels onto each beam pair. The shelves sit flat and are ready to load immediately.

How Many Kits Do I Need?

This kit covers one side of the container with a single 2250mm bay. Order two kits to start both side walls. Additionally, order up to four kits total to fill all two bay positions on both sides of a 20ft container. For complete coverage, add our rear-of-container racking kit for the end wall.

Suitable For

• On-site tool rooms and parts stores in 20ft site containers
• Retail and wholesale overflow storage
• Construction site containers — keeps equipment and materials off the floor
• Agricultural storage — seeds, chemicals, and small equipment
• Workshop and garage containers
