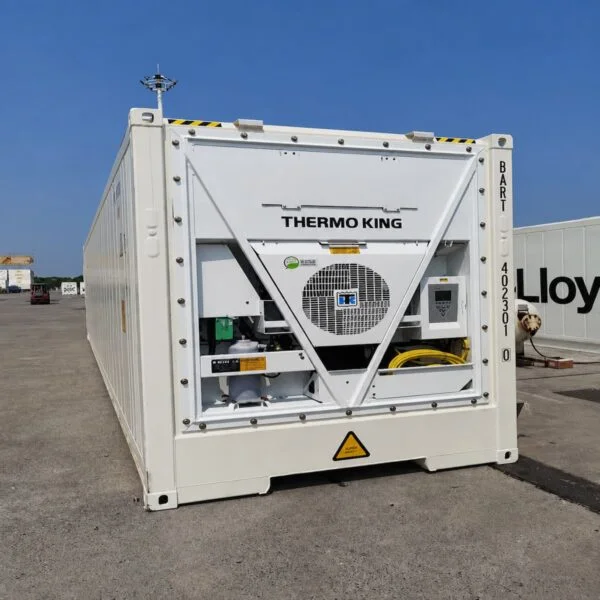

40ft New One-Trip High Cube Reefer Container – Thermo King Magnum Plus

This 40ft new one-trip high cube reefer container runs a Thermo King Magnum Plus refrigeration unit with R452A refrigerant across a -40°C to +30°C operating range — the widest cold range of any unit in the range. The stainless steel interior walls, aluminium flat floor, and four self-closing automatic floor drains meet food-grade hygiene standards straight from the factory. Furthermore, a panic alarm with exterior siren and strobe light and a safety door that opens from the inside are included as standard — both required for commercial walk-in cold store compliance. In addition, a 50ft power cable ships with the unit for flexible site positioning without additional infrastructure.
40ft New One-Trip High Cube Reefer Container Specifications
External Dimensions
Dimension Metres Feet / Inches
Length 12.19 m 40′ 0″
Width 2.44 m 8′ 0″
Height 2.90 m 9′ 6″
Internal Dimensions
Dimension Metres Feet / Inches
Length 11.58 m 38′ 0″
Width 2.29 m 7′ 6″
Height 2.59 m 8′ 6″
Door Opening
Dimension Metres
Door Width 2.29 m
Door Height 2.54 m
Weight & Capacity
Spec Value
Tare Weight 4,500 kg (9,920 lbs)
Max Payload 29,500 kg (65,040 lbs)
Refrigeration & Power
Spec Value
Refrigeration Unit Thermo King Magnum Plus
Compressor Digital scroll — aluminised coating
Temperature Range -40°C to +30°C
Refrigerant R452A — lower GWP than R134a
Power Supply 460V / 3-phase / 30A circuit
Power Cable 50ft — included
Interior Fit-Out & Safety Features
Feature Detail
Outer Cladding Stainless steel (MGSS)
Interior Walls Stainless steel — food grade
Floor Aluminium flat floor
Scuff Liner Interior aluminium scuff liner
Insulation Polyurethane — full walls and ceiling
Floor Drains 4 x automatic self-closing — 2 front, 2 rear
Door Curtain Heavy duty sliding curtain — temperature retention
Safety Door Opens from inside — walk-in cold store compliant
Panic Alarm Exterior siren and strobe light — included as standard
Interior Lighting Fitted with light switch
Warranty Manufacturer warranty included
Condition One-Trip (New)
Why the Thermo King Magnum Plus One-Trip Reefer Stands Apart
A 40ft new one-trip high cube reefer container with a Thermo King Magnum Plus covers temperature requirements that a standard used reefer simply can’t reach. The -40°C floor temperature goes 15 degrees below the standard -25°C floor on most used units — covering deep freeze seafood, ice cream distribution, pharmaceutical cold chain at vaccine storage temperatures, and industrial cryogenic applications. Furthermore, the R452A refrigerant carries a lower global warming potential than R134a — relevant for operators working under Australian environmental compliance frameworks for commercial refrigeration systems.

The food-grade stainless steel interior, aluminium flat floor, four automatic self-closing drains, and interior lighting meet the fit-out requirements for walk-in cool room and cold store use under Australian food safety standards. Moreover, the panic alarm and safety door that opens from the inside are both required for commercial walk-in cold stores — this unit arrives with both fitted as standard rather than as costly retrofits. In addition, the 50ft power cable gives flexible site positioning without placing the unit directly adjacent to the power board.

Key Features
One-trip (new) — factory new interior, never previously loaded
Thermo King Magnum Plus — digital scroll compressor, aluminised coating
-40°C to +30°C range — widest cold range in the range
R452A refrigerant — lower GWP than R134a
Stainless steel food-grade interior — full walls
Aluminium flat floor — hygienic, easy to clean
4 x automatic self-closing floor drains — front and rear
Panic alarm with exterior siren and strobe — included as standard
Safety door opens from inside — walk-in cold store compliant
Heavy duty sliding door curtain — temperature retention on access
Interior lighting with switch — fitted as standard
50ft power cable included — flexible site positioning
Manufacturer warranty included
Browse Refrigerated Containers
Additionally, used cargo worthy 40ft HC reefer units and 20ft refrigerated containers are available at lower price points for buyers who don’t need one-trip condition or the extended -40°C temperature floor. Browse our full range of refrigerated containers to compare conditions, machine brands, and price points in stock.

This container meets ISO 668 Series 1 freight container standards. Therefore, it suits active refrigerated freight, permanent cold storage, and walk-in cool room installations across Australian food processing and pharmaceutical operations.

Enquire About This 40ft New One-Trip High Cube Reefer Container
