40ft Shipping Container Racking Kit | 3-Tier Steel Shelving

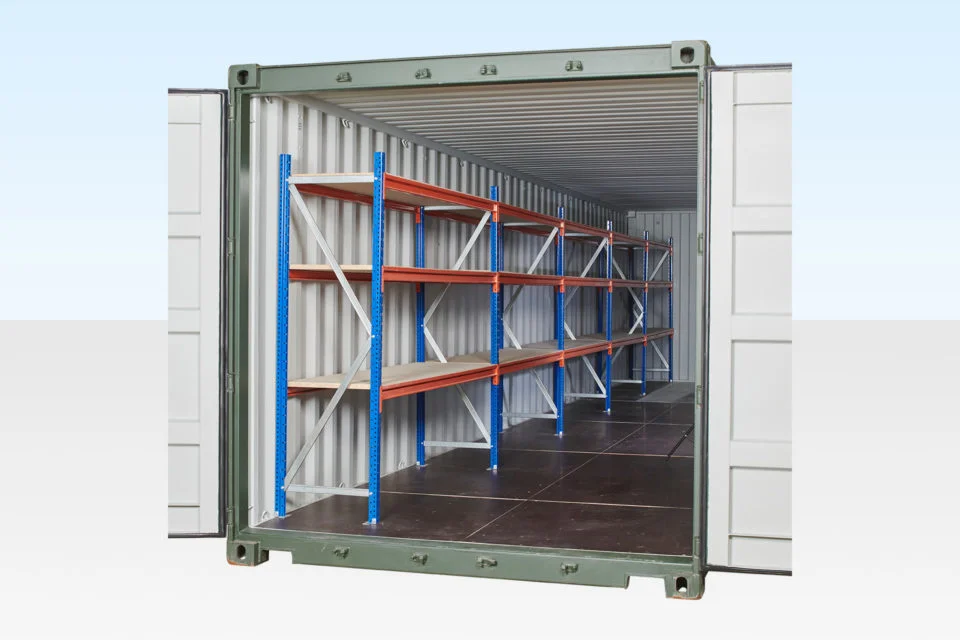

40ft Shipping Container Racking Kit — Single Bay 3-Tier

Make full use of your 40ft container’s interior. This single bay, three-tier steel racking kit is purpose-built for standard 40ft ISO container side walls. Furthermore, up to five bays fit per side — giving you a complete floor-to-ceiling storage system.

Each kit covers one side of the container. Order two kits to rack both sides. In addition, the end wall of a 40ft container provides enough clearance for racking. Therefore, pair this kit with our three-tier racking for the rear of container to maximise every square metre.

All steel components are powder coated in blue and orange for a tough, scratch-resistant finish. Each 25mm chipboard shelf supports up to 550kg of evenly distributed load.



 Condition: New — Powder-coated steel. Never used. Manufactured to order.

Racking Specifications

Specification	Detail
Bay Width	2250mm
End Frame Height	2000mm (2m)
End Frame Width	600mm
Shelf Tiers	3
Beams Per Shelf Level	2
Shelf Material	25mm chipboard
Shelf Load Capacity	550kg per shelf
Height Adjustment	50mm increments
Steel Finish	Powder coated — blue and orange
Beam Retention	Safety clips included on all beams
Kit Coverage	Single side — one 2250mm bay

40ft Container Racking Layout — Bays Per Position

A standard 40ft container accommodates up to five racking bays per side wall. As a result, a fully racked 40ft container holds up to 10 side-wall bays plus an additional rear-wall bay.

Wall Position	Max Bays	Kits Required
Left side wall	5	5
Right side wall	5	5
End (rear) wall	1	1 × rear racking kit

Note: The end wall requires our dedicated rear-of-container racking kit. Moreover, this side-wall kit is not designed for end wall installation.

Key Features

• Two pre-assembled end frames — no cutting, welding, or drilling required
• Beams slot directly into end frame uprights for rapid assembly
• Safety clips lock all beams and prevent dislodgement under load
• Shelf heights adjust in 50mm increments to suit your stock profile
• Each shelf supports up to 550kg of evenly distributed weight
• All steel powder coated in blue and orange — corrosion and scratch resistant
• 25mm chipboard shelf panels included per tier
• Designed for standard ISO Series 1 freight container interiors

Assembly Overview

The end frames arrive pre-assembled. Therefore, on-site setup is fast with no specialist tools required.

Step 1 — Position the End Frames

Stand both end frames upright along the container side wall. Space them 2250mm apart.

Step 2 — Slot in the Beams

Slot two beams per tier into the corresponding height holes on each end frame. Furthermore, repeat for all three shelf levels.

Step 3 — Attach Safety Clips

Clip the safety clips onto each beam end. As a result, the beams are locked and cannot dislodge under load.

Step 4 — Lay the Chipboard Shelves

Place the 25mm chipboard panels onto each beam pair. The shelves sit flat and are ready to load immediately.

How Many Kits Do I Need?

This kit covers one side of the container with a single 2250mm bay. Order two kits to start both side walls. Additionally, order up to 10 kits total to fully rack all five bay positions on both sides. For complete coverage, add our rear-of-container racking kit for the end wall.

Suitable For

• Warehousing and high-volume parts storage in 40ft site containers
• Tool rooms and equipment stores on large construction sites
• Retail and wholesale overflow storage
• Agricultural storage — fertiliser, seed, small machinery parts
• Workshop and manufacturing containers
