Adjustable Two-Tier Racking Kit — Container End Fit (Ref 2768)

Adjustable Two-Tier Racking Kit — Container End Fit (Ref 2768)

A container end racking kit 2-tier designed to fit against the end wall of a shipping container. The kit provides organised, adjustable-height storage inside a container without permanent fixings — ideal for tool storage, spare parts inventory, workshop overflow, and any container-based storage operation that needs racked shelving without a full workshop fit-out.

Kit Contents

• 2 × pre-assembled end frames — 2,000 mm high × 600 mm wide
• 2 × beams per shelf level — 4 beams total (2 shelves)
• 2 × 25 mm chipboard shelf boards
• Safety clips to secure beams to end frames
• All hardware included

Specifications

Bay width	1,850 mm — single bay
Frame height	2,000 mm
Frame depth	600 mm
Number of tiers	2 shelves (adjustable height in 50 mm increments)
Shelf material	25 mm chipboard
Load rating per shelf	550 kg uniformly distributed
Total kit load rating	1,100 kg (two shelves)
Frame construction	Steel — powder coated blue and orange
Beam construction	Steel — powder coated
Finish	Scratch-resistant powder coat
Assembly	Bolt-together — no welding required
Fixings to container	Free-standing — no fixings to container required
Condition	New — manufactured product

Container Compatibility

10ft containers	Not compatible — insufficient depth for this end kit
20ft containers	Compatible — fits against the end wall
40ft containers	Compatible — fits against the end wall
Combines with	Two-tier side racking (sold separately) for 20ft or 40ft container full fit-outs

How the Modular Racking System Works

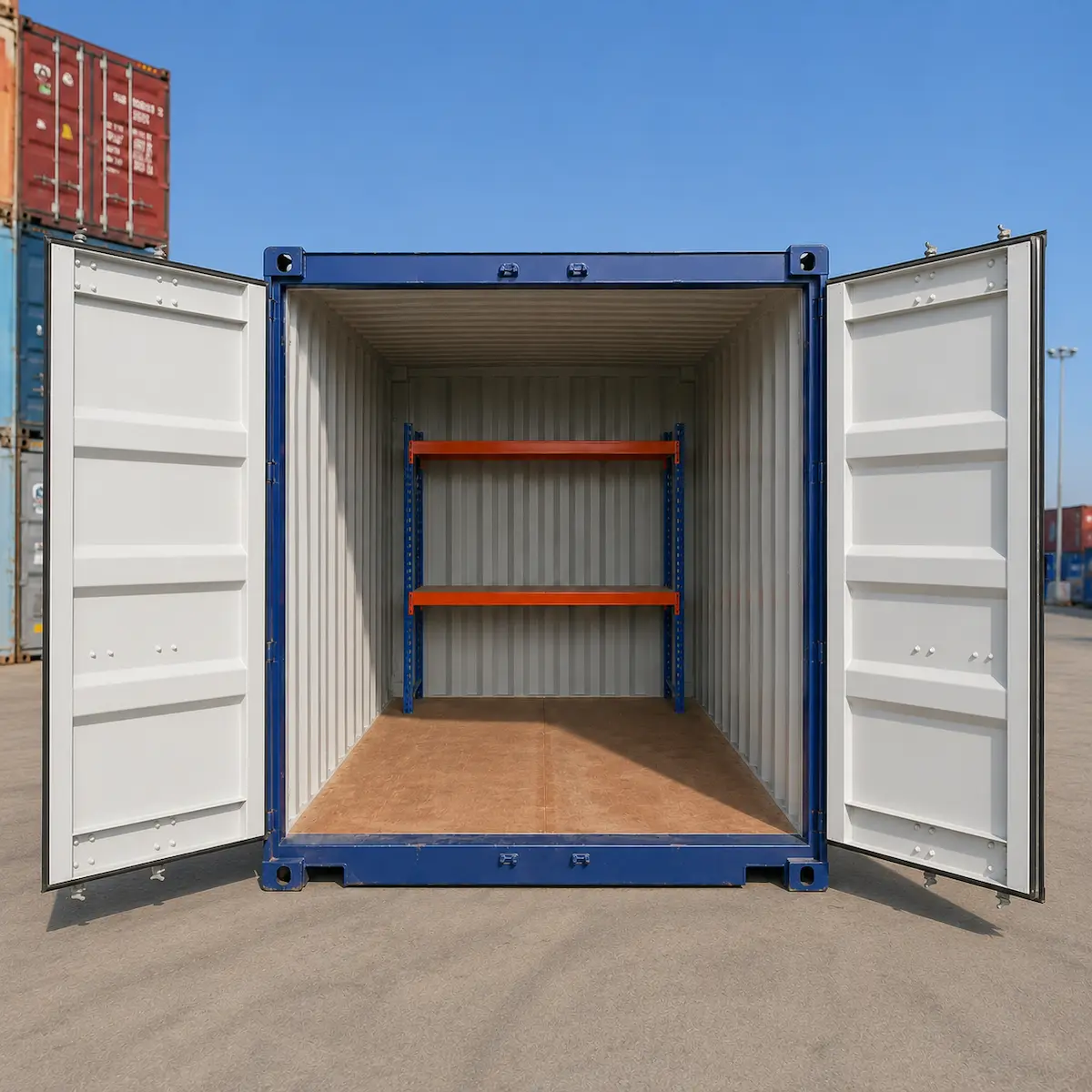

This end racking kit is one component of a modular container racking system. Used alone, it provides one bay of shelving against the container end wall — leaving the container floor clear for pallets, machinery, or larger stored items. Combined with two-tier side racking (available separately), the full system creates a U-shaped racked storage area around three walls of a 20ft or 40ft container, maximising the volume of racked storage per container footprint.

All frames are free-standing and require no drilling, welding, or fixing to the container itself. Racking can be dismantled and moved to a different container or reconfigured for a different bay arrangement without damaging the container structure — protecting the CSC certification and resale value of the container.

Key Features

• Fits against the end wall of a 20ft or 40ft shipping container
• No fixings required to the container — protects CSC certification and resale value
• 550 kg load rating per shelf — heavy-duty use
• Adjustable shelf height in 50 mm increments
• Powder-coated steel frames — scratch-resistant, corrosion-protected finish
• 25 mm chipboard shelves — solid surface for tools, parts, and inventory
• Safety clips secure beams to end frames — no loose components
• Bolt-together assembly — no welding required on site
• Modular — combines with side racking for full container fit-out

Typical Applications

• Tool and equipment storage in workshop containers
• Spare parts and consumables organisation in maintenance containers
• Warehouse overflow storage — creates racked storage without permanent shelving
• Farm and rural container storage — feed, tools, and parts organised on shelves
• Construction site container fit-outs — organised materials and hand tool storage
• Retail and event storage — inventory on shelves rather than piled on the floor

Data to Confirm at Order

• Assembly time estimate
• Recommended assembly tools
• Warranty terms on powder coating and steel structure
• Availability of matching two-tier side racking for 20ft and 40ft containers

Related accessories: container racking kits, ramps, and site office fit-out. For containers to fit this racking into, see the 20ft shipping container range and 40ft shipping container range.
