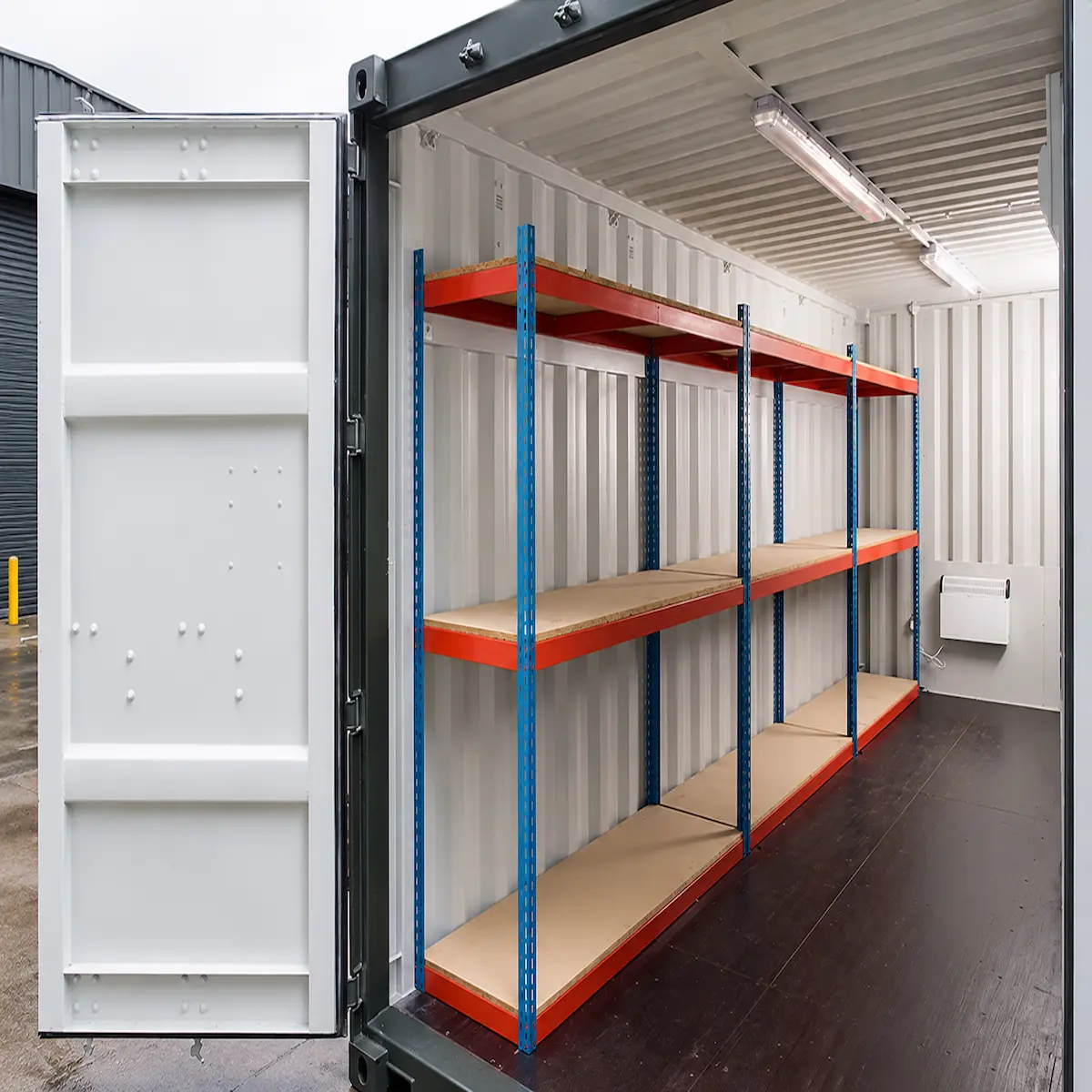

3-Tier Adjustable Container Side Racking — Single Bay QF1053 (Ref 2762)

3-Tier Adjustable Container Side Racking — Single Bay QF1053 (Ref 2762)

A single-bay 3-tier container side racking  designed to fit along one SIDE wall of a shipping container. This kit differs from the container-end variants (QF1065 two-tier and QF1066 three-tier) in bay width and orientation — the 2,250 mm bay lines up along the container’s long axis rather than across the end wall, so multiple bays can be linked to build continuous side-wall racking. Suits 10ft, 20ft, 30ft, and 40ft containers with different bay counts per container size.

Kit Contents (Single Bay, One Side)

• 2 × pre-assembled end frames — 2,000 mm high × 600 mm wide
• 2 × beams per shelf level — 6 beams total (3 shelves)
• 3 × 25 mm chipboard shelf boards
• Safety clips to secure beams to end frames
• All hardware included

Important: This kit covers ONE side of the container. Order 2 kits for full both-side coverage. For multi-bay side racking on 20ft, 30ft, or 40ft containers, order additional kits per the bay counts below.

Specifications

Bay width	2,250 mm — single bay
Frame height	2,000 mm
Frame depth	600 mm
Number of tiers	3 shelves (adjustable height in 50 mm increments)
Shelf material	25 mm chipboard
Load rating per shelf	550 kg uniformly distributed
Total kit load rating	1,650 kg (three shelves)
Frame construction	Steel — powder coated blue and orange
Finish	Scratch-resistant powder coat
Assembly	Bolt-together — no welding required
Fixings to container	Free-standing — no fixings to container required
Manufacturer code	QF1053
Condition	New — manufactured product

Maximum Bays Per Side by Container Size

Container size	Bays per side	Both sides total	Total shelves (both sides)
10ft	1 bay	2 bays	6 shelves
20ft	2 bays	4 bays	12 shelves
30ft	3 bays	6 bays	18 shelves
40ft	5 bays	10 bays	30 shelves

Side Racking vs End Racking — Which to Choose

Consideration	Side Racking (this kit)	End Racking (QF1065 / QF1066)
Position in container	Along one or both long side walls	Against the end wall
Bay width	2,250 mm	1,850 mm
Total capacity	Scales with container length (multi-bay)	Single bay only
Best for	Full container fit-out with dense shelving	Adding one bay of shelves without changing side access
40ft fit-out combination	Side + end together not possible — insufficient floor space	Same limit — pick one or the other

Container Compatibility

• Compatible with 10ft, 20ft, 30ft, and 40ft standard-height and high-cube shipping containers
• Fits along one side wall — order 2 kits per bay for both-side coverage
• Multi-bay linked installations possible in 20ft, 30ft, and 40ft containers
• 40ft fit-out limit: Side racking on both walls plus end racking is not possible — insufficient floor space
• Free-standing — no fixings to container required — protects CSC certification and resale value

Key Features

• Single-bay side racking for shipping container fit-out
• Fits 10ft through 40ft containers — different bay counts per container size
• 550 kg per shelf, 1,650 kg per kit total load
• Adjustable shelf height in 50 mm increments
• Powder-coated steel frames — scratch-resistant finish
• 25 mm chipboard shelves
• Bolt-together assembly — no welding required on site
• No fixings to container required
• Modular — order multiple kits for full container fit-out

Typical Applications

• High-density workshop container fit-outs — parts, tools, consumables on shelves
• Warehouse overflow storage in shipping containers
• Farm and rural container storage — feed, tools, spare parts
• Construction site container fit-outs — dense material and tool storage
• Retail, event, and pop-up storage where inventory needs vertical organisation
• Mining and remote-site container fit-outs — high-density parts stores

Data to Confirm at Order

• Assembly time estimate
• Recommended assembly tools
• Warranty terms on powder coating and steel structure
• Availability of matching two-tier side racking (if lower shelf density preferred)

Compare with the 3-tier end racking (QF1066) for single-bay end-wall fit, or the 2-tier end racking (QF1065) for lower-tier bulk storage. Browse the full container accessories range, or the 20ft and 40ft container ranges.
