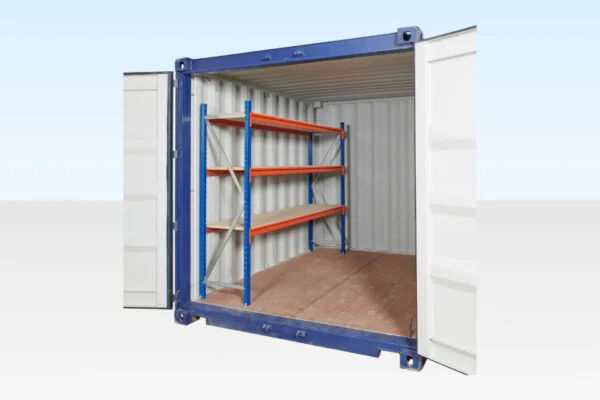

Single Bay 3-Tier Shipping Container Racking Kit

Maximise the storage capacity of your shipping container. This single bay, three-tier steel racking kit is purpose-built for standard ISO container interiors. Furthermore, it fits 10ft, 20ft, 30ft, and 40ft containers.

Each kit covers one side of the container. Order two kits to rack both sides. As a result, you double your usable shelf space without structural modifications or specialist tools.

All steel components are powder coated in blue and orange for a tough, scratch-resistant finish. Moreover, each 25mm chipboard shelf supports up to 550kg of evenly distributed load.



Racking Specifications

Specification	Detail
Bay Width	2250mm
End Frame Height	2000mm (2m)
End Frame Width	600mm
Shelf Tiers	3
Beams Per Shelf Level	2
Shelf Material	25mm chipboard
Shelf Load Capacity	550kg per shelf
Height Adjustment	50mm increments
Steel Finish	Powder coated — blue and orange
Beam Retention	Safety clips included on all beams
Kit Coverage	Single side — one 2250mm bay

Container Compatibility — Maximum Bays Per Side

This racking suits all standard ISO Series 1 freight containers. In addition, multiple kits run side-by-side in longer containers to fill the full wall length.

Container Size	Max Bays Per Side	Kits Required (Both Sides)
10ft	1	2
20ft	2	4
40ft	5	10

Note: Racking mounts on both side walls. However, the end wall does not provide sufficient clearance for a full bay. Plan your layout accordingly before ordering.

Key Features

• Two pre-assembled end frames — no cutting, welding, or drilling required
• Beams slot directly into end frame uprights for rapid assembly
• Safety clips lock all beams and prevent accidental dislodgement under load
• Shelf heights adjust in 50mm increments to suit your stock profile
• Each shelf supports up to 550kg of evenly distributed weight
• All steel powder coated in blue and orange — corrosion and scratch resistant
• 25mm chipboard shelf panels included per tier

Assembly Overview

The end frames arrive pre-assembled. Therefore, on-site setup is fast with no specialist tools required.

Step 1 — Position the End Frames

Stand both end frames upright along the container side wall. Space them 2250mm apart.

Step 2 — Slot in the Beams

Slot two beams per tier into the corresponding height holes on each end frame. Furthermore, repeat for all three shelf levels.

Step 3 — Attach Safety Clips

Clip the safety clips onto each beam end. As a result, the beams are locked and cannot dislodge under load.

Step 4 — Lay the Chipboard Shelves

Place the 25mm chipboard panels onto each beam pair. The shelves sit flat and are ready to load immediately.

How Many Kits Do I Need?

This kit covers one side of the container with a single 2250mm bay. Order two kits to rack both sides. Additionally, for longer containers, multiply by the number of bay positions required per side. Refer to the compatibility table above for a per-size kit count.

Suitable For

• Tool rooms and parts stores inside on-site storage containers
• Retail overflow and warehouse storage
• Construction site containers — keeps equipment and materials off the floor
• Agricultural storage — seeds, chemicals, and small equipment
• Workshop and garage containers
